DW Spectrum enables users to perform monitoring the health of Media Servers in the real-time mode. To proceed, perform one of the following:

•Drag Media Server from Resource Tree to Scene

•Open Media Server's Context Menu and choose Monitor (Monitor in a New Tab or Window)

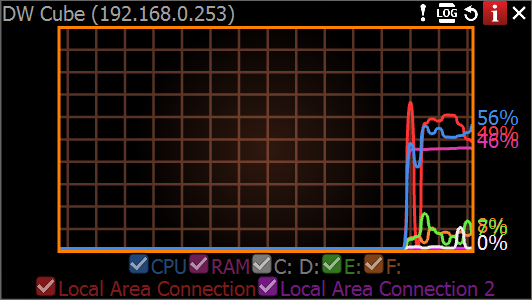

The information is displayed as follows:

•CPU Load

•Memory Usage (RAM)

•Hard disk partitions usage (C: and D: in this case).

•Network Interfaces Usage

To enable/disable graphs check/uncheck them. If hover with a mouse cursoe on a check, the corresponding graph will be clearly visible, the rest-ones will be faded:

User can perform standard manipulations with Monitoring Item: move, resize, swap, duplicate etc (see "Items on Layouts").

To stop monitoring, remove the corresponding item from Scene.

Multiple Media Servers can be monitored simultaneously.
